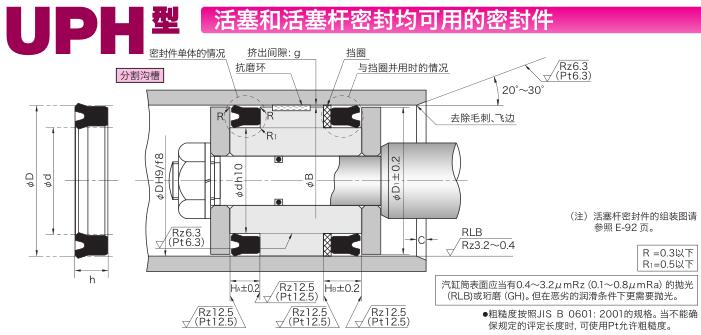

NOK---UPH型活塞和活塞杆专用密封

NOK---UPH型号活塞和活塞杆通用密封型号表（以下为NBR丁腈材质型号，如需FKM氟橡胶，欢迎来电咨询）

产品号         规格尺寸     材质

CU3308-D0      UPH6.3*16.3*7.5    A505

CU0024-D0      UPH6.3*16.3*8        A505

CU3309-D0      UPH7.1*17.1*7.5    A505

CU0030-D0      UPH7.1*17.1*8        A505

CU0042-D0      UPH8*18*7.5      A505

CU0043-D1      UPH8*18*8               A505

CU3310-D0      UPH9*19*7.5           A505

CU0054-D0      UPH9*19*8               A505

CU0068-D0      UPH10*20*7.5         A505

CU0069-D1      UPH10*20*8            A505

CU3311-D0      UPH11.2*21.2*7.5  A505

CU0081-D0      UPH11.2*21.2*8     A505

CU0093-D0      UPH12*25*8            A505

CU3312-D0      UPH12.5*22.5*7.5  A505

CU0102-D0      UPH12.5*22.5*8     A505

CU0121-D0      UPH14*24*7.5         A505

CU0122-D0      UPH14*24*8            A505

CU0135-D0      UPH15*25*8            A505

CU0137-D0      UPH15*28*10          A505

CU0156-D1      UPH16*26*7.5         A505

CU0157-D1      UPH16*26*8            A505

CU0161-D0      UPH16*32*10          A505

CU0182-D0      UPH18*28*8            A505

CU0186-D0      UPH18*31*10          A505

CU2196-D0      UPH18*33*10          A505

CU3313-D0      UPH18.5*31.5*10   A505

CU0215-D1      UPH20*30*8            A505

CU0221-D0      UPH20*33*10          A505

CU0224-D0      UPH20*35*10          A505

CU0239-D0      UPH21.5*31.5*8     A505

CU0249-D0      UPH22*35*10          A505

CU0263-D0      UPH22.4*32.4*8     A505

CU0265-D1      UPH22.4*35.4*10   A505

CU0282-D2      UPH25*35*8            A505

CU0288-D0      UPH25*38*10          A505

CU0292-D0      UPH25*40*10          A505

CU0301-D0      UPH25*45*12          A505

CU0309-D0      UPH25.5*35.5*8     A505

CU2347-D0      UPH27*40*10          A505

CU0330-D2      UPH28*40*10          A505

CU0335-D0      UPH28*41*10          A505

CU0340-D0      UPH28*43*10          A505

CU0364-D0      UPH30*43*10          A505

CU0368-D2      UPH30*45*10          A505

CU0385-D0      UPH31.5*44.5*10   A505

CU0387-D1      UPH31.5*46.5*10   A505

CU2451-D0      UPH32*45*10          A505

CU0403-D0      UPH32*46*10          A505

CU0404-D0      UPH32*48*10          A505

CU0408-D0      UPH34*50*12          A505

CU0437-D4      UPH35*50*10          A505

CU0438-D0      UPH35*50*12          A505

CU0441-D0      UPH35*51*12          A505

CU0456-D2      UPH35.5*50.5*10   A505

CU0458-D0      UPH35.5*51.5*12   A505

CU0470-D1      UPH38*52*10 A505

CU0505-D3      UPH40*55*10 A505

CU0508-D0      UPH40*56*10 A505

CU0509-D0      UPH40*56*12 A505

CU0514-D0      UPH40*60*12 A505

CU0523-D0      UPH41*56*10 A505

CU0577-D5      UPH45*60*10 A505

CU0578-D0      UPH45*60*12 A505

CU0580-D0      UPH45*61*12 A505

CU0591-D0      UPH47*63*12 A505

CU0601-D1      UPH48*63*10 A505

CU0631-D2      UPH50*65*10 A505

CU0635-D0      UPH50*66*12 A505

CU0639-D3      UPH50*70*12 A505

CU0669-D0      UPH51*71*12 A505

CU3317-D0      UPH53*69*12 A505

CU0683-D0      UPH53*73*12 A505

CU0704-D1      UPH55*71*12 A505

CU0708-D2      UPH55*75*12 A505

CU0712-D0      UPH55*80*15 A505

CU0727-D0      UPH56*72*12 A505

CU0728-D1      UPH56*76*12 A505

CU0757-D1      UPH60*76*12 A505

CU0761-D1      UPH60*80*12 A505

CU0791-D0      UPH63*79*12 A505

CU0793-D1      UPH63*83*12 A505

CU2123-D1      UPH64*80*12 A505

CU3318-D0      UPH65*81*12 A505

CU0819-D1      UPH65*85*12 A505

CU0831-D0      UPH67*87*12 A505

CU3319-D0      UPH67*87*15 A505

CU0862-D1      UPH70*90*12 A505

CU0864-D0      UPH70*90*15 A505

CU0884-D1      UPH71*91*12 A505

CU0885-D0      UPH71*91*15 A505

CU0910-D1      UPH75*95*12 A505

CU0911-D1      UPH75*95*15 A505

CU0948-D1      UPH80*100*12        A505

CU0949-D2      UPH80*100*15        A505

CU0989-D1      UPH85*105*12        A505

CU0990-D0      UPH85*105*15        A505

CU1030-D3      UPH90*110*12        A505

CU1031-D0      UPH90*110*15        A505

CU1042-D1      UPH92*112*12        A505

CU2132-D1      UPH92*112*15        A505

CU1056-D0      UPH95*115*12        A505

CU1057-D1      UPH95*115*15        A505

CU1061-D0      UPH95*120*15        A505

CU1089-D3      UPH100*120*12      A505

CU1091-D0      UPH100*120*15      A505

CU1096-D0      UPH100*125*15      A505

CU1129-D2      UPH105*125*15      A505

CU1138-D0      UPH106*126*15      A505

CU1165-D1      UPH110*130*15      A505

CU1182-D0      UPH112*132*15      A505

CU1198-D0      UPH115*135*15      A505

CU1207-D0      UPH118*138*15      A505

CU1224-D2      UPH120*140*15      A505

CU1257-D0      UPH125*145*15      A505

CU1933-D0      UPH125*150*19      A505

CU1284-D2      UPH130*150*15      A505

CU3320-D0      UPH130*155*19      A505

CU1292-D0      UPH132*152*15      A505

CU2703-D1      UPH132*157*19      A505

CU1305-D0      UPH135*155*15      A505

CU3322-D0      UPH135*160*15.7  A505

CU1960-D0      UPH135*160*19      A505

CU1327-D1      UPH140*160*15      A505

CU1332-D2      UPH140*165*19      A505

CU1344-D0      UPH145*165*15      A505

CU2348-D0      UPH145*170*19      A505

CU1363-D2      UPH150*170*15      A505

CU1367-D0      UPH150*175*19      A505

CU1391-D2      UPH155*180*15      A505

CU3323-D0      UPH155*180*15.7  A505

CU1393-D0      UPH155*180*19      A505

CU1413-D0      UPH160*185*15      A505

CU2349-D0      UPH160*185*19      A505

CU1431-D0      UPH165*190*15      A505

CU3324-D0      UPH165*190*19      A505

CU1448-D1      UPH170*195*15      A505

CU3325-D0      UPH170*195*19      A505

CU1461-D2      UPH175*200*15      A505

CU3326-D0      UPH175*200*15.7  A505

CU1463-D1      UPH175*200*19      A505

CU1490-D0      UPH180*205*15      A505

CU1492-D0      UPH180*205*19      A505

CU1504-D0      UPH185*210*15      A505

CU1519-D0      UPH190*215*15      A505

CU3327-D0      UPH190*215*19      A505

CU1532-D0      UPH199*224*15      A505

CU3329-D0      UPH199*224*15.7  A505

CU1535-D0      UPH199*224*19      A505

CU1547-D0      UPH200*225*15      A505

CU2350-D0      UPH200*225*19      A505

CU1579-D0      UPH210*235*18      A505

CU1585-D0      UPH212*237*19      A505

CU3331-D0      UPH215*240*19      A505

CU2926-D0      UPH224*249*19      A505

CU1625-D0      UPH225*250*18      A505

CU1626-D0      UPH225*250*19      A505

CU1649-D0      UPH236*261*19      A505

CU1683-D1      UPH250*275*19      A505

CU1694-D0      UPH255*280*19      A505

CU1714-D0      UPH265*297*24      A505

CU1722-D0      UPH270*300*18      A505

CU1725-D0      UPH270*300*24      A505

CU2774-D0      UPH280*310*22      A505

CU2166-D0      UPH280*312*24      A505

CU1918-D0      UPH283*315*24      A505

CU1750-D0      UPH290*320*18      A505

CU1752-D0      UPH290*320*22      A505

CU2351-D0      UPH300*332*24      A505

CU1772-D0      UPH310*340*18      A505

CU1773-D0      UPH310*340*22      A505

CU3064-D0      UPH315*347*24      A505

CU2101-D0      UPH320*340*12      A505

CU1780-D0      UPH320*350*22      A505

CU1784-D0      UPH323*355*24      A505

CU1786-D0      UPH330*355*16      A505

CU1787-D0      UPH330*356*20      A505

CU1789-D0      UPH330*360*22      A505

CU1793-D1      UPH335*355*14      A505

CU2197-D0      UPH335*367*24      A505

CU1795-D0      UPH340*370*22      A505

CU2243-D0      UPH345*365*14      A505

CU2087-D0      UPH348*380*24      A505

CU2302-D0      UPH350*370*14      A505

CU1799-D2      UPH350*380*22      A505

CU1801-D0      UPH355*385*22      A505

CU1916-D0      UPH355*387*24      A505

CU1803-D0      UPH360*390*22      A505

CU1805-D0      UPH365*395*22      A505

CU1807-D0      UPH368*400*24      A505

CU1810-D0      UPH370*400*23      A505

CU1811-D0      UPH370*400*25      A505

CU2303-D0      UPH371*396*16      A505

CU3357-D0      UPH375*407*24      A505

CU1813-D0      UPH380*400*15      A505

CU1815-D0      UPH380*410*15      A505

CU2162-D0      UPH380*420*30      A505

CU1818-D0      UPH390*420*22      A505

CU1819-D0      UPH395*425*22      A505

CU1823-D0      UPH400*430*22      A505

CU2007-D0      UPH400*430*25      A505

CU3358-D0      UPH400*432*24      A505

CU1833-D0      UPH420*455*25      A505

CU1917-D0      UPH425*457*24      A505

CU1837-D0      UPH430*470*20      A505

CU1841-D0      UPH435*470*25      A505

CU1843-D0      UPH440*480*35      A505

CU2244-D0      UPH445*470*18      A505

CU1844-D0      UPH450*480*22      A505

CU3359-D0      UPH450*482*24      A505

CU1850-D0      UPH460*500*20      A505

CU1853-D0      UPH475*507*24      A505

CU2245-D0      UPH480*505*18      A505

CU1855-D0      UPH490*530*25      A505

CU2189-D0      UPH520*550*17      A505

CU1860-D0      UPH525*555*15      A505

CU2084-D0      UPH530*570*20      A505

CU2037-D0      UPH540*560*14      A505

CU2190-D0      UPH570*600*17      A505

CU2160-D0      UPH600*630*20      A505

CU2036-D0      UPH600*630*28      A505

CU1868-D0      UPH600*640*30      A505

CU2284-D0      UPH640*685*25      A505

CU1873-D0      UPH700*730*15      A505

CU1877-D0      UPH760*800*34      A505

CU1878-D0      UPH768*800*30      A505

CU1882-D1      UPH818*850*24      A505

CU1883-D0      UPH825*850*16      A505

CU2124-D0      UPH825*860*27      A505

CU2325-D0      UPH925*950*14      A505

CU1892-D0      UPH950*980*20      A505

CU1894-D0      UPH1020*1050*18 A505

CU1895-D0      UPH1025*1055*15 A505

CU2192-D0      UPH1100*1140*20 A505

CU1899-D0      UPH1220*1280*30 A505

CU2191-D0      UPH1560*1600*20 A505

CU1904-D0      UPH1620*1680*30 A505
