品牌：日本NOK密封件

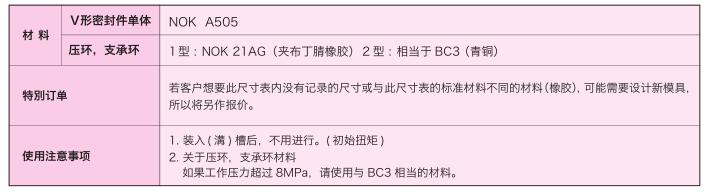

材料代号：A505(丁腈橡胶）和F357（氟橡胶）

适用的主要流体：A505:通用石油基液压油，水乙二醇液压油，油-水乳化型液压油。

                F357：通用石油基液压油，磷酸酯液压油，农用化学品。

特点：与V99F相比较，这是在密封性能更中药的情况下选用。根据工作压力由夹层密封件可用于苛刻的工作条件。安装宽度比U型密封件的要大。密封能力比U型密封件低。我们推荐用这个产品与V99F相组合。

应用范围：工程机械，压力机，农用机械，升降机，工业设备，注塑机等。

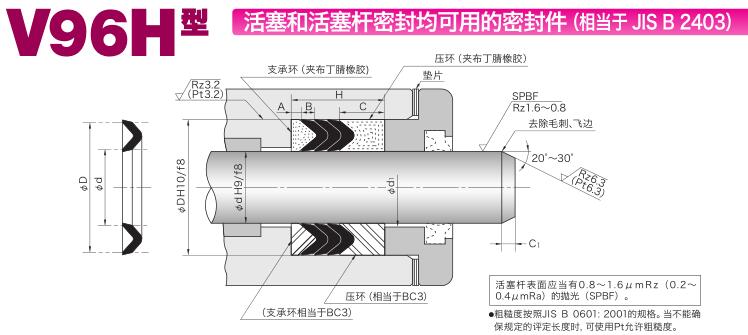

V96H型活塞和活塞杆通用密封圈型号表

产品号         规格尺寸

CV0001-F0        V96H 6.3*16.3*2.5

CV0005-F0        V96H 7.1*17.1*2.5

CV0010-F0        V96H 8*18*2.5

CV0018-F0        V96H 9*19*2.5

CV0027-F0        V96H 10*20*2.5

CV0037-F0        V96H 11.2*21.2*2.5

CV0046-F0        V96H 12.5*22.5*2.5

CV0056-F0        V96H 14*24*2.5

CV0084-F0        V96H 16*26*2.5

CV0071-F0        V96H 15*28*3

CV0109-F0        V96H 18*31*3

CV0114-F0        V96H 18.5*31.5*3

CV0132-F0        V96H 20*33*3

CV0163-F0        V96H 22.4*35.4*3

CV0176-F0        V96H 25*38*3

CV0220-F0        V96H 27*40*3

CV0231-F0        V96H 28*41*3

CV0280-F0        V96H 31.5*44.5*3

CV0293-F0        V96H 32*45*3

CV1893-F0        V96H 34*50*3.5

CV0338-F0        V96H 35.5*51.5*3.5

CV0369-F0        V96H 40*56*3.5

CV0417-F0        V96H 45*61*3.5

CV0440-F0        V96H 47*63*3.5

CV0456-F0        V96H 50*66*3.5

CV0502-F0        V96H 53*69*3.5

CV0517-F0        V96H 55*71*3.5

CV0538-F0        V96H 56*72*3.5

CV0561-F0        V96H 60*76*3.5

CV0598-F0        V96H 63*79*3.5

CV0619-F0        V96H 64*80*3.5

CV0650-F0        V96H 67*87*4

CV0673-F0        V96H 70*90*4

CV0700-F1        V96H 71*91*4

CV0710-F0        V96H 75*95*4

CV0754-F0        V96H 80*100*4

CV0792-F0        V96H 85*105*4

CV0826-F0        V96H 90*110*4

CV0849-F0        V96H 92*112*4

CV0854-F0        V96H 95*115*4

CV0872-F0        V96H 100*120*4

CV0927-F0        V96H 105*125*4

CV0939-F0        V96H 106*126*4

CV0966-F0        V96H 112*132*4

CV1896-F0        V96H 118*138*4

CV0993-F0        V96H 120*140*4

CV1017-F0        V96H 125*150*5

CV1053-F0        V96H 132*157*5

CV1062-F0        V96H 135*160*5

CV1087-F0        V96H 140*165*5

CV1116-F0        V96H 145*170*5

CV1143-F0        V96H 150*175*5

CV1176-F0        V96H 155*180*5

CV1183-C0       V96H 160*185*5

CV1203-F0        V96H 165*190*5

CV1215-F0        V96H 170*195*5

CV1235-F0        V96H 175*200*5

CV1260-F0        V96H 180*205*5

CV1286-F0        V96H 190*215*5

CV1308-F0        V96H 199*224*5

CV1315-F0        V96H 200*225*5

CV1350-F0        V96H 212*237*5

CV1384-F0        V96H 224*249*5

CV1392-F0        V96H 225*250*5

CV1416-F0        V96H 236*261*5

CV1445-F0        V96H 250*275*5

CV1486-F0        V96H 265*297*6

CV1512-F0        V96H 280*312*6

CV1539-F0        V96H 300*332*6
